parameters1：Support PC,Laptop USB 2.0/USB3.0 Input
parameters2：Add a secondary HDMI display
parameters3：Support multi screen function
LC-dolida USB 3.0 to HDMI 1080P Converter Cable for Windows 10/8/7 PC ONLY
1. First of all, pls install its internal driver directly. After plug it into your computer, you will see there a new USB device folder in your computer, then open it and double click to install the driver.
2. If you cannot get it work, please contact the email in the paper which come with the item. I will send driver to you directly.
then install the driver and RESTART your computer.
(Pls remove the adapter while you restart your computer.)
3. It's better to turn off anti-virus software and low down the firewall level before install the driver. It takes about 6-10 seconds to mirroring from PC to TV, after you get everything ready
4. If found it can't convert picture well, pls check if you plug the adapter on a USB3.0 port of your computer or not? And check the HDMI extend cable version you using, the HDMI version at least be V1.3 or higher, or it can support high resolution data transmission.
5. It also support USB2.0 port, but for USB2.0 port the max resolution support 800*600 only.
1.Support for USB 3.0 input and HDMI output
2.Computer connection: USB 3.0 480Mbps of bandwidth
3.USB3.0 maximum resolution of 1920x1080, including 1600x1200, 1.65Gbps / 165MHz / 24bit bandwidth
4.HDMI output port support 1.65Gbps / 165MHz / 24bit Bandwidth
5.USB video support Primary, Extended, Mirror, Rotate
6.ONLY Supported Operating Systems, Windows 10, Windows 8.1/8, Windows 7

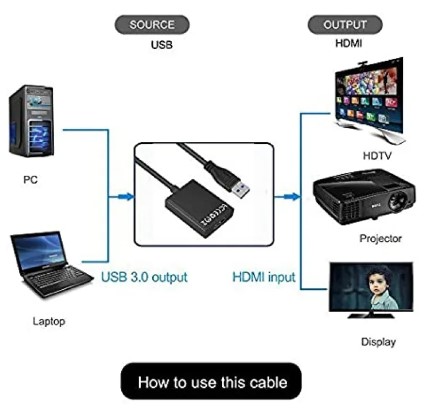

The Lightweight and portable USB to HDMI adapter connects a computer via USB to an HDTV, monitor, or projector with HDMI; A separate HDMI cable (not included) is required. Driver Software Supports Display Rotation, Great for Connecting to TV from Laptop PC Sturdy, Only compatiable with Windows 7, Windows 8, Windows 10
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, this USB 3.0 to HDMI adapter functions as an external graphics card to deliver smooth, high-definition content to your HDTV or monitors at resolution up to 1920x1080
SuperSpeed USB 3.0 Interface and backward compatible with USB 2.0. Support for hot-pluggable devices (Only USB 3.0 connector can achieve HD 1080P, if you are usb 2.0 port, it just can be 800 x 600 and there is no sound)
Please install its internal driver directly. After plug it into your computer, you will see there a new USB device folder in your computer, then open it and double click to install the driver
ONLY support USB 3.0 port to HDMI output, resolution support 800*600 / 1280*720 / 1360*768 / 1600*1200 / 1920*1080
